Featured Snippet: Why are plastic parts used in HVAC systems?
Engineered plastics are used in modern HVAC systems to improve performance, reliability, and efficiency over traditional metal components. The primary benefits include superior corrosion resistance to prevent rust and leaks, improved aerodynamic efficiency for better airflow and energy savings, and significant noise and vibration reduction. This engineering shift results in HVAC units that are quieter, more durable, and longer-lasting.
When you look at an HVAC unit, you typically see a sturdy metal box. But the real magic—the components responsible for performance, efficiency, and longevity—are hidden inside. Over the past two decades, a quiet revolution has taken place within that metal shell, as engineers have systematically replaced heavy, corrosion-prone metal parts with advanced, precision-molded plastics.
This wasn’t a cost-cutting measure; it was a performance upgrade. Each plastic part in a modern HVAC system is an engineered solution to a specific problem, from fighting rust to reducing noise. As a manufacturing partner at the heart of this evolution, HVACore has helped bring these innovative designs to life.
To truly understand why modern HVAC systems are superior, you need to look past the metal and get to know the unseen plastic heroes within. Let’s take a tour of the most critical plastic parts and why they are essential.
The Blower Wheel and Fan Blades
At the very heart of your HVAC system is the component that moves the air: the blower wheel or fan. This is arguably the single most important plastic part for system performance.
A centrifugal fan, often resembling a hamster wheel, with dozens of precisely shaped blades. It sits inside the air handler and is responsible for pulling air through the filter and evaporator coil and pushing it into your home’s ductwork.
The primary reason is aerodynamic efficiency. The performance of a fan is dictated by the complex, curved shape of its blades. Plastic injection molding allows engineers to create these intricate airfoil shapes with perfect consistency, part after part. Trying to stamp and form these shapes from sheet metal is far less precise and much more expensive. The result is a fan that is lightweight, inherently balanced, and optimized to move the maximum amount of air with the minimum amount of energy and noise.
A well-designed plastic blower wheel directly leads to a higher SEER (Seasonal Energy Efficiency Ratio) rating, a quieter system, and less strain on the fan motor, extending its life.

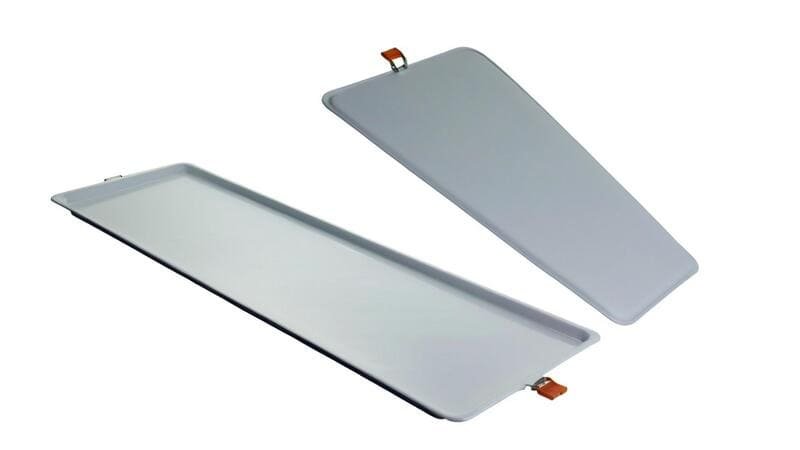

The Condensate Drain Pan
If the blower wheel is the heart of the system, the condensate drain pan is its silent guardian. This simple-looking part has one of the most critical jobs in the entire unit: water management.
What It Is: A shallow tray that sits beneath the cold evaporator coil to collect the water (condensation) that drips off it during the cooling process.
Why It’s Plastic: The answer is simple and absolute: corrosion resistance. The process of air conditioning creates a constant supply of water. For a metal pan, even one with a galvanized coating, rust is not a matter of if, but when. A small scratch in the coating becomes a starting point for corrosion, which can eventually lead to leaks. A leaking condensate pan can cause thousands of dollars in water damage to ceilings, walls, and floors, resulting in angry customers and costly warranty claims. Plastic does not rust. It is completely inert to water, ensuring a lifetime of leak-proof performance.
The Impact: A properly designed plastic drain pan is the single best defense against water damage from an HVAC unit. It also allows for complex, sloped geometries to be molded in, ensuring positive drainage and preventing the stagnant water buildup that can lead to mold and mildew.
HVAC Components Manufacturing
Structural Components: The Base Pan and Internal Chassis
Many people assume the structural frame of an HVAC unit must be metal for strength. However, advanced plastics are now taking over this role, especially in the outdoor condenser unit.
What It Is: The base pan is the foundation of the outdoor unit, on which the compressor, coil, and fan motor are mounted. The internal chassis is the skeleton of the indoor air handler.
Why It’s Plastic: Two reasons: corrosion resistance and part consolidation. The base pan of an outdoor unit is constantly exposed to rain, snow, lawn sprinklers, and corrosive salt spray in coastal areas. A metal base pan will rust, weaken, and look unsightly over time. A plastic base pan is immune to this. Furthermore, using injection molding, a single glass-fiber reinforced plastic base pan can replace an assembly of a dozen metal brackets, stamped pieces, and fasteners. All the mounting points, supports, and drainage features are molded into one complex, robust part.
The Impact: This consolidation dramatically reduces assembly time and labor costs. It creates a stronger, more integrated structure without the weak points of screws and welds. The inherent vibration-damping properties of plastic also help to quiet the entire unit, especially the noisy compressor.
The Fan Housing (Volute or Scroll)
The fan housing is the blower wheel’s essential partner. The two are designed together as a system to maximize airflow and efficiency.
What It Is: The snail-shaped housing that encloses the blower wheel. Its job is to take the high-velocity air coming off the fan blades and convert it into the static pressure needed to push air through the ductwork.
Why It’s Plastic: Like the blower wheel, the housing’s geometry is complex. It’s a spiral (or volute) that expands in cross-section. Injection molding is the perfect process to create this shape seamlessly and repeatably. A plastic housing also provides excellent sound and vibration damping. A metal housing can act like a drum, resonating and amplifying the noise of the fan and motor. A plastic housing absorbs that energy, contributing significantly to the unit’s quiet operation.
The Impact: A well-matched plastic fan and housing system is the key to achieving high airflow with low noise levels. This directly translates to better comfort and a more pleasant user experience.
HVAC Components Manufacturing

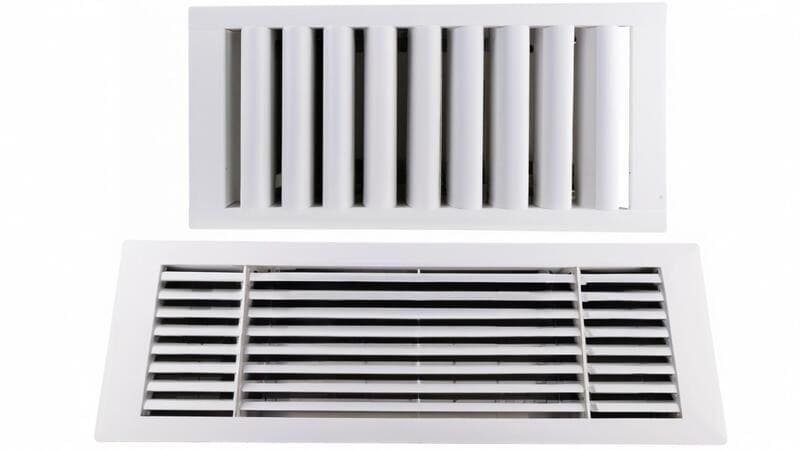

Air Louvers, Grilles, and Vents
These are the components that users interact with most directly, as they guide the airflow into the room and contribute to the unit’s aesthetic appearance.
What It Is: The grated covers on the indoor and outdoor units that allow air to pass through while protecting the internal components.
Why It’s Plastic: Design freedom and durability. Injection molding allows for intricate and aesthetically pleasing grille patterns that are also optimized for airflow and quietness. The color is molded directly into the plastic, so it will never scratch or peel like a painted metal grille. For outdoor units, UV-stabilized plastics are used to prevent them from becoming brittle or discolored from sun exposure. It’s also possible to use techniques like overmolding to add soft, rubber-like seals directly onto the grilles for a better fit and reduced vibration.
The Impact: Plastic grilles provide a long-lasting, high-quality finish that resists weathering and damage. They offer designers more freedom to create products that are both functional and visually appealing.
Conclusion: A System Built on Plastic Innovation
As we’ve seen, the most critical functions of a modern HVAC system—moving air, managing water, providing structure, and reducing noise—are now predominantly handled by precision-engineered plastic components. From the aerodynamic perfection of the blower wheel to the rust-proof guarantee of the drain pan, each part is a testament to the power of matching the right material with the right manufacturing process.
This shift to plastics is not a trend; it’s a fundamental advancement in engineering. It has allowed HVAC manufacturers to build products that are more efficient, more reliable, quieter, and longer-lasting than ever before. At HVACore, we are proud to be the manufacturing force behind these innovations, helping our clients turn brilliant designs into the superior components that define the next generation of HVAC systems.
