Featured Snippet: Why is injection molding used for HVAC components?
Plastic injection molding is the dominant manufacturing process for HVAC components because it uniquely translates complex designs into high-performance parts at scale. Key advantages include creating intricate aerodynamic shapes for better efficiency, consolidating multiple metal parts into a single component to slash assembly costs, and ensuring perfect repeatability for superior quality control. This process enables the production of lighter, quieter, and more durable HVAC systems.
For decades, the image of an air conditioner has been a heavy, humming metal box. But this perception is rapidly becoming outdated. While the exterior might still be metal, a revolution has taken place inside. The most critical, high-performance components—the parts responsible for airflow, water management, and quiet operation—are no longer made of steel or aluminum. They are made from advanced engineering plastics.
This shift isn’t about cutting corners. It’s a deliberate, strategic move by leading HVAC manufacturers to build better, longer-lasting, and more efficient products. As a manufacturing partner at the forefront of this evolution, we at HVACore have seen firsthand why plastic is no longer just an alternative, but often the superior choice for demanding HVAC applications.
So, why has the industry embraced polymers? The answer lies in a unique combination of properties that metal simply cannot match, offering solutions to age-old engineering challenges.
The Ultimate Defense Against Corrosion
The single greatest enemy of any air conditioning system is water. The very process of cooling air—dehumidification—creates a constant supply of condensation. When metal meets water, the result is inevitable: rust and corrosion.
This is where plastic offers its most decisive advantage. Engineering plastics are fundamentally inert to water and common atmospheric chemicals. They do not rust. Ever.
Consider the condensate drain pan, the component tasked with collecting all the water that drips from the cold evaporator coil. A galvanized steel pan is on a countdown to failure from day one. Scratches in its protective coating become starting points for rust, which can eventually lead to leaks, catastrophic water damage to property, and costly warranty claims.
A plastic drain pan, by contrast, is a permanent solution. It is impervious to corrosion. Its smooth, molded surface also resists the buildup of slime and biofilm, a common problem in metal pans that can clog drain lines. The same principle applies to the outdoor unit’s base pan and other components exposed to rain, snow, and coastal salt spray. Where metal degrades, plastic endures.

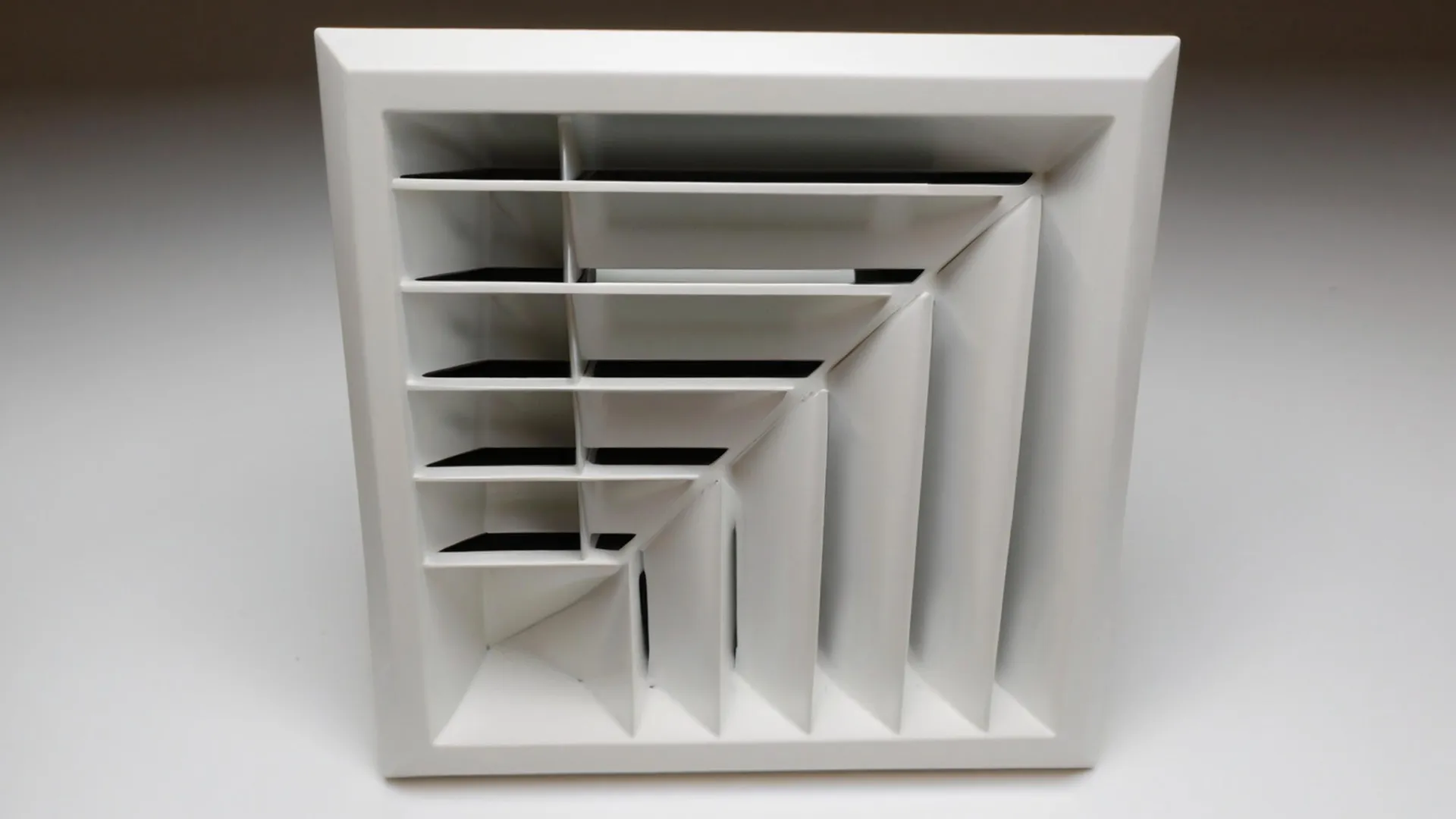

HVAC Components Manufacturing
Unlocking Performance Through Unmatched Design Freedom
Metal fabrication is inherently restrictive. You can stamp it, bend it, and weld it. While effective for simple boxes, these processes are limiting when creating components with complex, three-dimensional shapes.
Plastic injection molding shatters these limitations. It allows engineers to design parts for optimal performance, not just for ease of manufacturing. This freedom is most evident in airflow components.
The blower wheel (or centrifugal fan) is a perfect example. Its dozens of curved blades are not styled for aesthetics; they are precision airfoils, each designed to move the maximum volume of air with the minimum amount of noise and energy. Achieving this complex, organic geometry consistently across every blade is practically impossible with metal fabrication. With injection molding, it’s standard procedure. The molten polymer flows into the mould, perfectly replicating every complex curve to create a lightweight, aerodynamically optimized, and inherently balanced fan.
This design freedom also enables Part Consolidation. Instead of manufacturing and assembling a dozen separate metal brackets, mounts, and channels, a single, complex plastic part can be designed with all these features molded directly into it. A modern HVAC chassis can have:
- Molded-in screw bosses for mounting circuit boards.
- Integrated snap-fit clips for attaching panels without screws.
- A grid of reinforcing ribs for strength without weight.
- Channels for routing wires and drainage tubes.
This approach dramatically reduces assembly time, lowers labor costs, eliminates potential points of failure (like loose screws or weak welds), and results in a stronger, more integrated final product.
The Pursuit of Quiet, Efficient, and Lightweight Systems
Two of the biggest consumer complaints about HVAC systems are noise and energy consumption. Plastic addresses both of these issues at a fundamental material level.
Acoustic and Vibration Damping
Metal is resonant. Think of a bell. When a motor or compressor vibrates, flat metal panels can amplify that vibration and radiate it as noise. Engineers fight this by adding heavy, expensive sound-damping mats. Plastic, on the other hand, has inherent Vibration Damping properties. It absorbs vibrational energy rather than transmitting it. When a fan motor is mounted to a plastic housing, the housing itself helps to deaden the sound, leading to a significantly quieter unit without the need for secondary soundproofing materials.
Weight and Energy Efficiency
Plastic components are significantly lighter than their metal counterparts. A lightweight plastic blower wheel is easier to spin up and balance than a heavy steel one. This means it requires a smaller, less powerful, and more energy-efficient motor to do the same job. The weight savings cascade through the entire system: lighter components mean a lighter overall unit, which is cheaper to ship from the factory and easier for technicians to install.
Thermal Insulation
Metal is an excellent thermal conductor; plastic is a poor one (an insulator). This property can be a significant advantage. For instance, cold air passing through a metal housing can cause the exterior of the housing to become cold, leading to "sweating" or condensation in humid environments. A plastic housing, being a better insulator, is far less likely to have this issue, further contributing to better water management within the system.

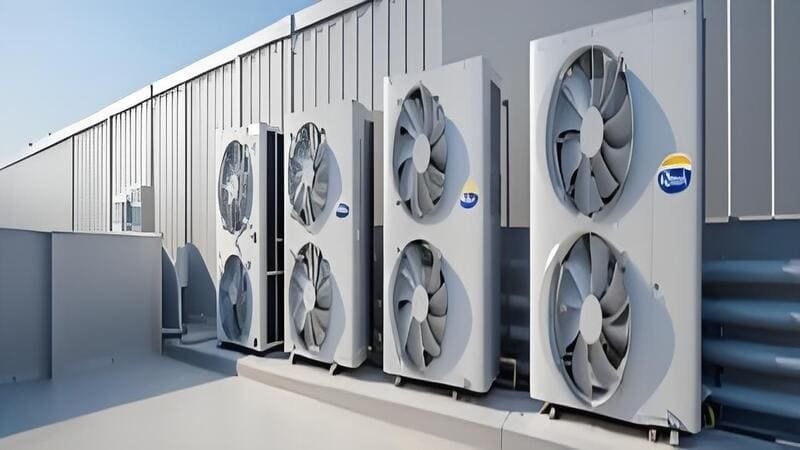

HVAC Components Manufacturing
The Compelling Economics of Mass Production
While a high-quality steel injection mould represents a significant upfront investment, the economics of mass production heavily favor plastic for high-volume applications. The key is in the per-part cost.
The manufacturing process is incredibly fast and efficient. A crucial metric in injection molding is Cycle Time. For many HVAC components, this can be under a minute. This high speed allows for the production of thousands of identical parts per day from a single mould, driving the cost per part down to a fraction of a comparable machined or assembled metal component.
Furthermore, plastics eliminate costly secondary operations. The color is inherent to the material, so there is no need for painting, which can chip, peel, or scratch. Textured or high-gloss surface finishes can be engraved directly into the mould itself. Logos, labels, and safety warnings can be molded in. This "done-in-one" capability saves time, money, and adds to the durability of the final part’s appearance.
Conclusion: A Strategic Choice for Superior Performance
The move towards engineering plastics in HVAC systems is not a compromise; it is an upgrade. It is a strategic decision driven by the pursuit of greater durability, higher performance, quieter operation, and better long-term value.
From the rust-proof reliability of a condensate pan to the aerodynamic efficiency of a blower wheel, plastics solve real-world engineering problems in ways that metal cannot. This material shift allows manufacturers to build lighter, more efficient, and more reliable air conditioners that last longer and provide a better customer experience.
we stand at the intersection of material science and precision manufacturing. We partner with HVAC leaders to leverage these advantages, turning their advanced designs into flawless components. The quiet hum of a modern, efficient air conditioner is, in many ways, the sound of well-engineered plastic at work.
