Featured Snippet: Why is injection molding used for HVAC components?
Plastic injection molding is the dominant manufacturing process for HVAC components because it uniquely translates complex designs into high-performance parts at scale. Key advantages include creating intricate aerodynamic shapes for better efficiency, consolidating multiple metal parts into a single component to slash assembly costs, and ensuring perfect repeatability for superior quality control. This process enables the production of lighter, quieter, and more durable HVAC systems.
In the world of HVAC manufacturing, the final product—a quiet, efficient, and reliable air conditioner or furnace—is the result of countless engineering decisions. We’ve explored why advanced plastics have become the material of choice for critical components. But the material is only half the story. The other, equally important half is the manufacturing process used to shape that material. For the HVAC industry, one process stands above all others: plastic injection molding.
Injection molding is not merely a way to make plastic parts; it is the core enabling technology that unlocks the full potential of those advanced materials. It’s the engine that translates a designer’s complex digital model into a physical, high-performance component with staggering speed and precision.
As a dedicated manufacturing partner for the HVAC sector, we at HVACore see this every day. The most innovative leaps in HVAC performance are inextricably linked to the capabilities of injection molding. Understanding why this process is so dominant is key to understanding how superior HVAC products are made.
Unlocking Unprecedented Design Freedom and Complexity
The first and most profound advantage of injection molding is its ability to create parts with nearly limitless geometric complexity. Traditional metal fabrication is a process of subtraction and assembly—cutting, stamping, bending, and welding. Injection molding is a process of creation—filling a void to produce a perfect, monolithic shape.
This allows engineers to break free from the constraints of right angles and flat planes. Consider the most aerodynamically sensitive parts in an HVAC unit:

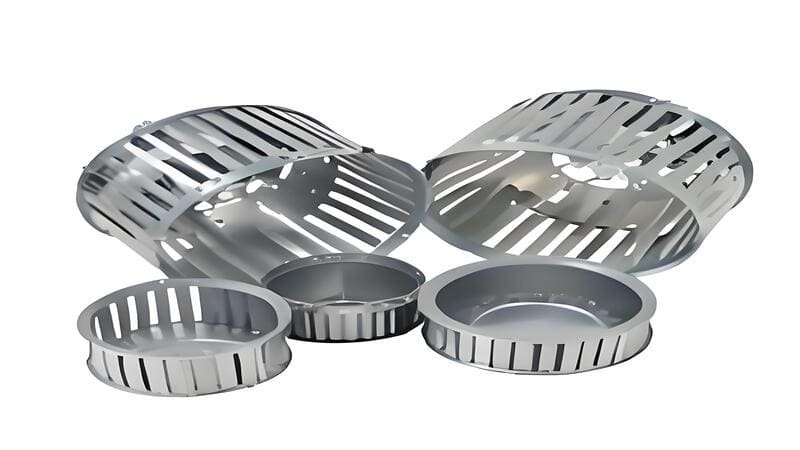

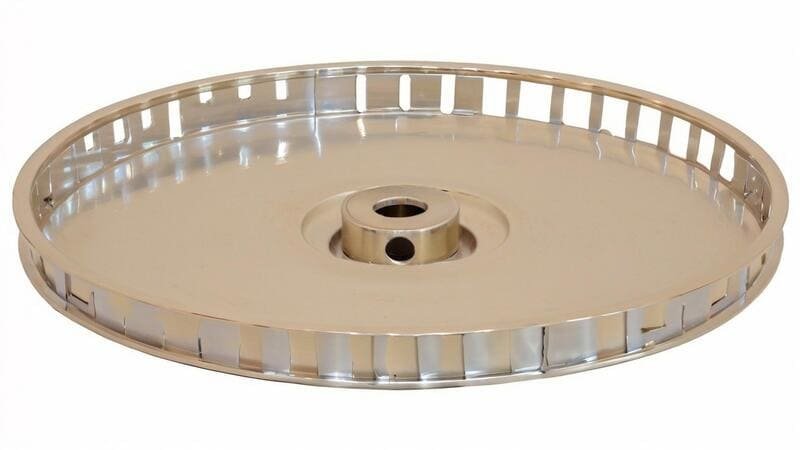

- Fan Blades and Blower Wheels: The efficiency and noise level of a fan are determined by the precise curvature and airfoil shape of its blades. Injection molding can replicate these complex, organic curves perfectly in every single part, creating a lightweight, inherently balanced, and aerodynamically optimized component that would be prohibitively expensive or impossible to produce in metal.
- Housings and Volutes: The scroll-shaped housing (volute) that surrounds a blower wheel is designed to efficiently manage airflow and pressure. Injection molding allows this complex, expanding spiral shape to be molded as a single, seamless piece with high precision.
- Vents and Grilles: Airflow direction and aesthetics are controlled by vents and grilles, which often feature intricate patterns. Molding these patterns is a simple, one-step process, ensuring both function and a high-quality cosmetic finish.
This process consistently holds Tight Tolerances, meaning the dimensional accuracy of each part is maintained within fractions of a millimeter. For an HVAC system where parts must fit together perfectly to prevent leaks, rattles, and performance loss, this level of precision is not a luxury—it’s a necessity.
The Strategic Advantage of Part Consolidation
Beyond creating complex individual parts, injection molding enables a powerful design strategy: part consolidation. This is the practice of designing a single, complex molded component to replace an assembly of multiple, simpler parts.
Imagine a traditional metal HVAC chassis. It might consist of a main frame, ten separate mounting brackets, a handful of wire clips, and dozens of screws and rivets to hold it all together. Each part must be manufactured, stored, and then painstakingly assembled by hand.
With injection molding, this can be redesigned as a single plastic chassis. All the features are molded directly into the part:
- Screw bosses for mounting the control board.
- Snap-fit features to attach panels without fasteners.
- Integrated channels to guide wiring harnesses.
- A grid of ribs for structural strength where needed.
The benefits of this approach are immense:
- Drastically Reduced Assembly Costs: It eliminates the time and labor required to assemble multiple pieces.
- Improved Structural Integrity: A single monolithic part is inherently stronger than an assembly held together by fasteners, which can loosen or fail over time.
- Lower Inventory Costs: The company only needs to source, track, and store one part number instead of twenty.
- Reduced Weight: The consolidated plastic part is almost always lighter than the metal assembly it replaces.
HVAC Components Manufacturing
Unmatched Repeatability for Mass Production and Quality Control
Consistency is the bedrock of quality manufacturing. Every HVAC unit that comes off the assembly line must perform to the same high standard. Injection molding is the champion of repeatability.
Once a high-quality steel mould is created and the manufacturing parameters are set, the process is incredibly stable. This methodical approach, often involving Process Validation studies, ensures that the first part produced is dimensionally and functionally identical to the millionth part. The precise control over plastic temperature, injection pressure, and cooling time guarantees that every single part meets the exact design specifications.
This consistency is critical for HVAC systems:
- Balanced Fans: Every molded fan blade is a perfect clone, eliminating the balance issues common with less precise methods and reducing vibration and noise.
- Leak-Proof Seals: When molding components that must seal together, like the two halves of a housing, the high repeatability ensures a perfect mate every time.
- Automated Assembly: When robots are used in final assembly, they rely on parts being in the exact same position and shape every time. Injection molding’s consistency makes this automation possible.
This ability to scale from producing a few thousand parts to millions, all from the same tool and with the same high level of quality, is what makes injection molding the economic engine of high-volume manufacturing.
HVAC Components Manufacturing
Integrated Features that Eliminate Secondary Operations
A major cost in manufacturing is not just making the part, but finishing it. This includes painting, texturing, drilling holes, and attaching other components. Injection molding allows many of these "secondary operations" to be eliminated by incorporating them directly into the molding process itself.
- In-Mould Color and Texture: The plastic pellets are pre-colored, meaning the color is integral to the part. It can never chip, peel, or scratch off like paint. Similarly, surface textures—from a fine matte finish to a leather-like grain—can be etched directly into the mould surface, creating a perfect finish on every part with no extra steps.
- Insert Molding: This powerful technique involves placing a non-plastic component (like a metal piece) into the mould before the plastic is injected. The molten plastic then flows around the piece, permanently encapsulating it. A common use in HVAC is Insert Molding of threaded brass nuts into plastic bosses. This provides the strong, durable metal threads needed for repeated assembly and disassembly, combined with the lightweight and corrosion resistance of the plastic body.
- Overmolding: This is a two-step injection molding process where a rigid plastic part is first molded, and then placed into a second mould where a soft, rubber-like material (like TPE) is molded directly onto it. This is used to create integrated gaskets, vibration-damping feet, or soft-touch surfaces on HVAC control panels.
By eliminating these downstream steps, injection molding streamlines the entire supply chain, reduces costs, and creates a more durable, higher-quality final component.
Conclusion: The Right Process for the Right Industry
The choice of plastic injection molding in the HVAC industry is not accidental. It is a strategic decision that directly addresses the industry’s core demands for performance, reliability, and cost-effectiveness. It is the only process that combines extreme design freedom, the efficiency of part consolidation, the quality assurance of perfect repeatability, and the cost savings of integrated features.
Plastic injection molding transforms a simple plastic pellet into a complex, high-performance component that is lighter, quieter, more durable, and more efficient than its predecessors. For any HVAC company looking to innovate and lead the market, mastering this manufacturing process—or partnering with an expert like HVACore who already has—is not just an option; it’s the foundation of success.
