Plastic injection-molded components play several critical, distinct roles in an HVAC system. They are essential for managing airflow, using parts like blower wheels and louvers to move and direct air with precision. They also provide a strong, corrosion-proof structural foundation through base pans and housings. Critically, components like the condensate drain pan manage water to prevent leaks and mold. Overall, these parts work together to enhance efficiency, ensure longevity, and reduce operational noise.
When you feel a refreshing blast of cool air from an air conditioner, you’re experiencing the end result of a complex mechanical symphony. While the compressor and refrigerant get most of the credit, this system would fail to function without its supporting cast: a diverse array of precisely engineered plastic components. These parts, born from sophisticated plastic injection moulds, are the unsung heroes that guide airflow, manage water, provide structural integrity, and ensure quiet, efficient operation.
At HVACore, we specialize in creating these critical components. We understand that they are not mere accessories; they are functional workhorses, each with a specific job to do. To truly appreciate the engineering behind a modern HVAC unit, you need to understand the vital roles these molded plastic parts play.
Let’s pull back the curtain and explore how these components work together to deliver the cool comfort you depend on.
HVAC Components Manufacturing
The Masters of Airflow: Directing and Moving Air with Precision
The primary job of an air conditioner is to move air—pulling warm, humid indoor air over a cold coil and pushing the newly cooled, dehumidified air back into the room. This entire process is orchestrated by plastic components designed for maximum aerodynamic efficiency.
The Blower Wheel (or Centrifugal Fan): The Engine of Air Movement
Deep inside your indoor AC unit is a cylindrical fan, often called a blower wheel or "squirrel cage" fan. Its job is to move a large volume of air through the system quietly and efficiently.
- How it Works: As the wheel spins, its dozens of curved blades scoop up air from the center and sling it outwards using centrifugal force. This creates the pressure needed to push the air through the dense fins of the evaporator coil and out into your room.
- Why Plastic is Essential: A metal blower wheel would be heavy, requiring a more powerful, energy-hungry motor and creating more noise and vibration. Molded plastic (like glass-filled polypropylene or ABS) allows for the creation of an incredibly lightweight yet rigid wheel.
- The Role of the Mould: The mould’s precision is paramount. It ensures every single blade has the exact same aerodynamic profile, size, and weight. This perfect symmetry, achievable only through high-precision molding, results in a fan that is inherently balanced. An unbalanced fan would vibrate, create a racket, and cause premature wear on the motor bearings.
Louvers and Grilles: The Conductors of Air

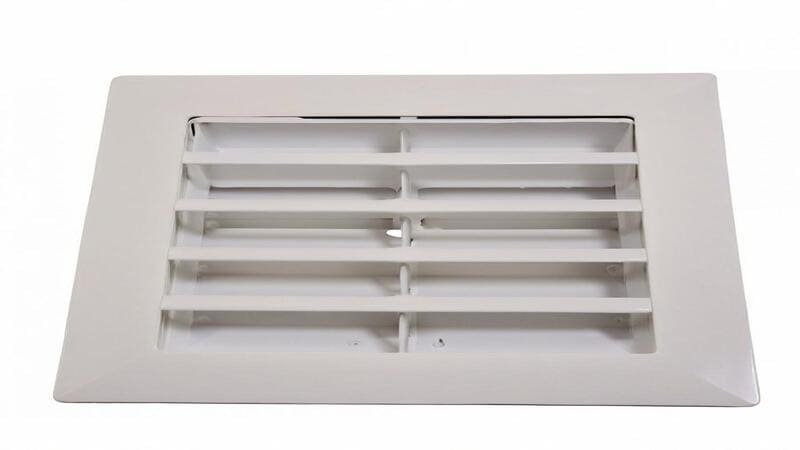

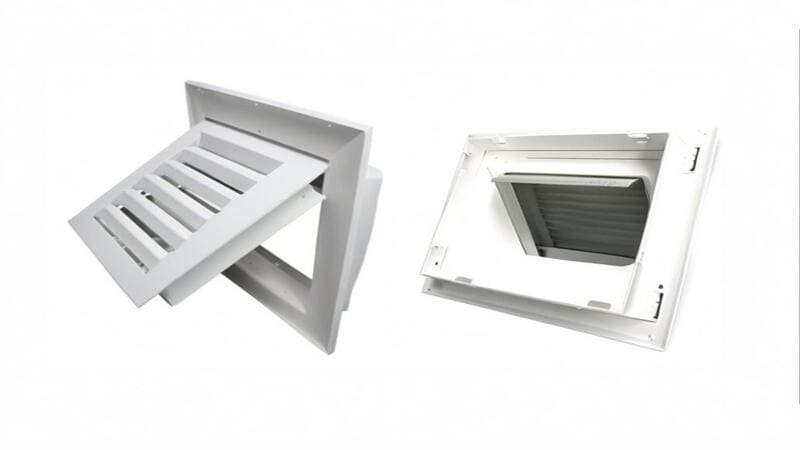

The vents on your AC unit, with their adjustable flaps (louvers) and protective grating (grille), are the final touchpoint for airflow.
- How they Work: Louvers are shaped like tiny wings. By changing their angle, you can direct the stream of cool air up, down, left, or right, ensuring even temperature distribution in a room. The grille protects fingers from the fan and provides a clean, aesthetic finish.
- Why Plastic is Essential: Plastic can be molded into the precise airfoil shapes needed for effective airflow control. Furthermore, it allows for "snap-fit" designs—tiny, flexible clips molded directly into the part—that let the grille snap securely into the main unit without any screws, simplifying both assembly and maintenance.
- The Role of the Mould: The mould creates these intricate features in a single step. It molds the smooth, aerodynamic surfaces of the louvers, the flexible clips of the snap-fits, and can even produce a high-gloss or textured surface finish, eliminating the need for painting or secondary finishing.
HVAC Components Manufacturing
The Structural Skeleton: Providing Strength and Protection
An HVAC unit contains heavy components like motors, coils, and compressors, all of which vibrate during operation. The plastic structural parts provide a robust, stable, and corrosion-proof foundation.
The Base Pan and Housing: The Foundation and Shield
The bottom of an outdoor unit (the base pan) and the main body of an indoor unit are often made from thick, rugged plastic.
- How they Work: These components serve as the chassis. They support the full weight of all internal parts, maintain their precise alignment, and protect sensitive electronics from dust, moisture, and impact.
- Why Plastic is Essential: Unlike a stamped metal pan, a plastic base pan will never rust. This is a massive advantage, especially in outdoor units or for the indoor unit’s drain pan, which is constantly exposed to water. Engineering-grade plastics like talc-filled polypropylene or glass-reinforced nylon offer immense strength and rigidity while also being excellent at damping vibration, contributing to quieter operation.
- The Role of the Mould: Injection molding allows for incredible design integration. Instead of welding multiple metal pieces, a mould can create a single, complex base pan that includes:
- Molded-in Bosses: Raised cylindrical features for screws to anchor motors and circuit boards.
- Strengthening Ribs: A grid-like pattern of supports that add tremendous rigidity without adding much weight.
- Integrated Channels: Pathways for water drainage and wire routing.
The Crucial Role of Water Management
One of the most important jobs of an air conditioner is dehumidification. This process creates a significant amount of water (condensation), and managing this water is critical to preventing property damage, mold, and mildew.
The Condensate Drain Pan: The Unsung Guardian
As warm, humid air passes over the cold evaporator coil, water vapor condenses into liquid, just like on a cold glass of iced tea. This water drips down into the condensate drain pan.
- How it Works: The drain pan is a shallow tray positioned directly beneath the evaporator coil. Its sole purpose is to catch every drop of water and channel it towards a drain line, which carries it safely out of the building.
- Why Plastic is Essential: This is a non-negotiable application for plastic. A metal pan in this environment of constant standing water would inevitably rust and fail, leading to catastrophic leaks. Plastic is completely immune to corrosion.
- The Role of the Mould: A drain pan’s success lies in subtle design details brought to life by the mould. The mould designer engineers a slight, precisely calculated slope (a "draft angle") into the floor of the pan. This ensures that gravity pulls all the water towards the drain opening, leaving no stagnant puddles behind that could foster bacteria and mold growth. The mould also creates an ultra-smooth surface finish that discourages grime and biofilm from adhering.
HVAC Components Manufacturing
The Guardians of Quiet and Efficiency
Beyond the main components, smaller plastic parts work in the background to reduce noise and boost the system’s overall efficiency.
Fan Shrouds: Maximizing Air Pressure
A fan shroud is a precisely shaped funnel that fits closely around the tips of the fan blades.
- How it Works: It creates a seal, preventing air from "leaking" back around the fan blades. This dramatically increases the fan’s efficiency, allowing it to build more pressure and push more air through the system with the same amount of energy.
- Why Plastic is Essential: Plastic can be molded into the complex, curved shapes required to match the fan’s profile perfectly, a task that would be difficult and expensive with metal.
- The Role of the Mould: The mould’s ability to hold tight tolerances is key. It ensures the gap between the shroud and the fan blades is minimal and consistent, maximizing the performance boost.
Conclusion: Engineered Solutions, Not Just Plastic Parts
From the perfectly balanced blower wheel to the rust-proof drain pan, every molded plastic part in an air conditioner serves a distinct and critical purpose. They are a testament to the power of combining advanced material science with precision engineering. These are not commodity items; they are engineered solutions designed to enhance performance, ensure longevity, and deliver the quiet, reliable comfort that customers expect.
At HVACore, our expertise lies in translating these complex functional requirements into flawless physical components. We understand how the subtle details of mould design—a draft angle, a rib pattern, a gate location—directly impact the final part’s ability to to manage airflow, bear loads, and resist the elements. By mastering the art and science of plastic injection molding, we help build the invisible quality that defines a superior HVAC system.
